PDF Form Maker: PDF Form Field Recognition by Clicking

PDFill PDF Editor 12 has the ability to recognize PDF form fields by clicking, making it faster and easier to create dynamic forms in PDF.

You can test these 5 examples:

Recognition Type	Before Recognition	After Recognition
Text Field Over Line	Textbox_Over_line.pdf	Textbox_Over_line_after.pdf
Text Field In a Box	TextBox_in_Box.pdf	TextBox_in_Box_after.pdf
Text Field With Combo Chars	TextBox_Combo_Chars.pdf	TextBox_Combo_Chars_after.pdf
Check Box in a Box	CheckBox_in_Box.pdf	CheckBox_in_Box_after.pdf
Radio Button In a Box	RadioButton.pdf	RadioButton_after.pdf

Step 1: Start PDFill PDF Editor from Desktop, select Menu File > New Project to Open PDF. Or, click from Standard Toolbar.

Step 2: Choose Forms Menu or Forms Toolbar

Click "Form Field Recognition by Clicking" , select one type of form field recognition:

Step 3: Use the following table to click inside the PDF Page to get new PDF form fields:

Form Field Recognition Clicking Before Clicking After Clicking

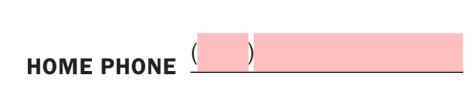

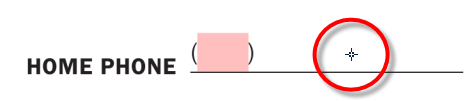

Text Field over a line

Over a line

Text Field inside a Box

Inside a box

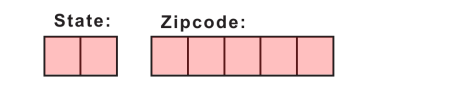

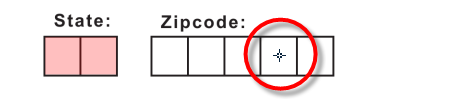

Text Field with Combo Chars
by inside a Box

Inside one of the char box

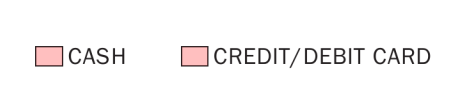

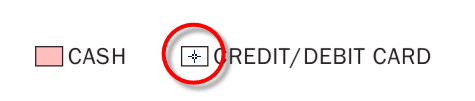

Check box inside a Box

Inside a box

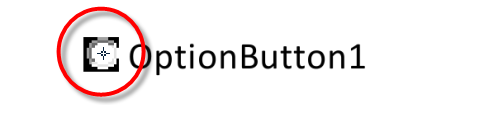

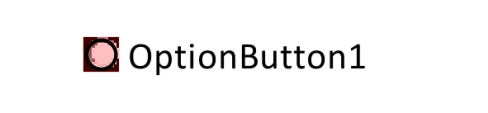

Radio Button by inside a Box

Inside a Box

Step 4. Save project file and save into a new PDF to see the effect inside Adobe Reader.

Step 5: If you need to edit each field, see details.

Form Field Recognition	Clicking	Before Clicking	After Clicking
Text Field over a line	Over a line
Text Field inside a Box	Inside a box
Text Field with Combo Chars by inside a Box	Inside one of the char box
Check box inside a Box	Inside a box
Radio Button by inside a Box	Inside a Box
